A Distant Signal

back





Cajon Pass

Hill 582





2002, Judd Spittler

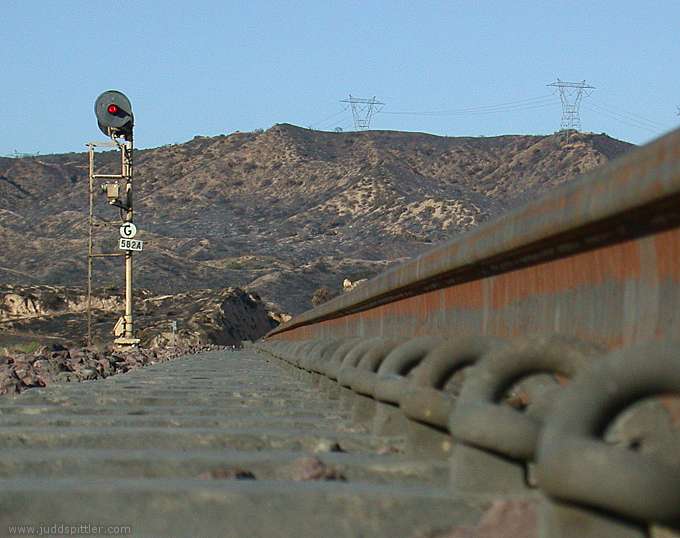

When a signal is placed in a location that is not associated with switches or junctions, its purpose is typically to prevent rear-end collisions with a train ahead.  When this type of signal is red, it is usually required that a train stop at the signal, but after doing so, the train may proceed at "restricted speed" (a speed that eliminates the possibility of an accidental collision with a train ahead).  When a "G" placard is attached to the signal, it indicates a "grade" signal.  In this case, the engineer must slow to restricted speed, but does not need to stop first.

June 22, 2002, 6:09 PM
1/500 sec - f7.3 - ASA 100
Nikon Coolpix 995 (digital)
147 mm (35mm equivalent)
